Tetra Pak TTF-2*84c/38c-6-1 & BSTF-2*54c/4x16S-6-1
Heat exchangers
Tubular heat exchangers
STN13763
Tetra Pak
TTF-2*84c/38c-6-1 & BSTF-2*54c/4x16S-6-1
0000
1996
- liter per hour

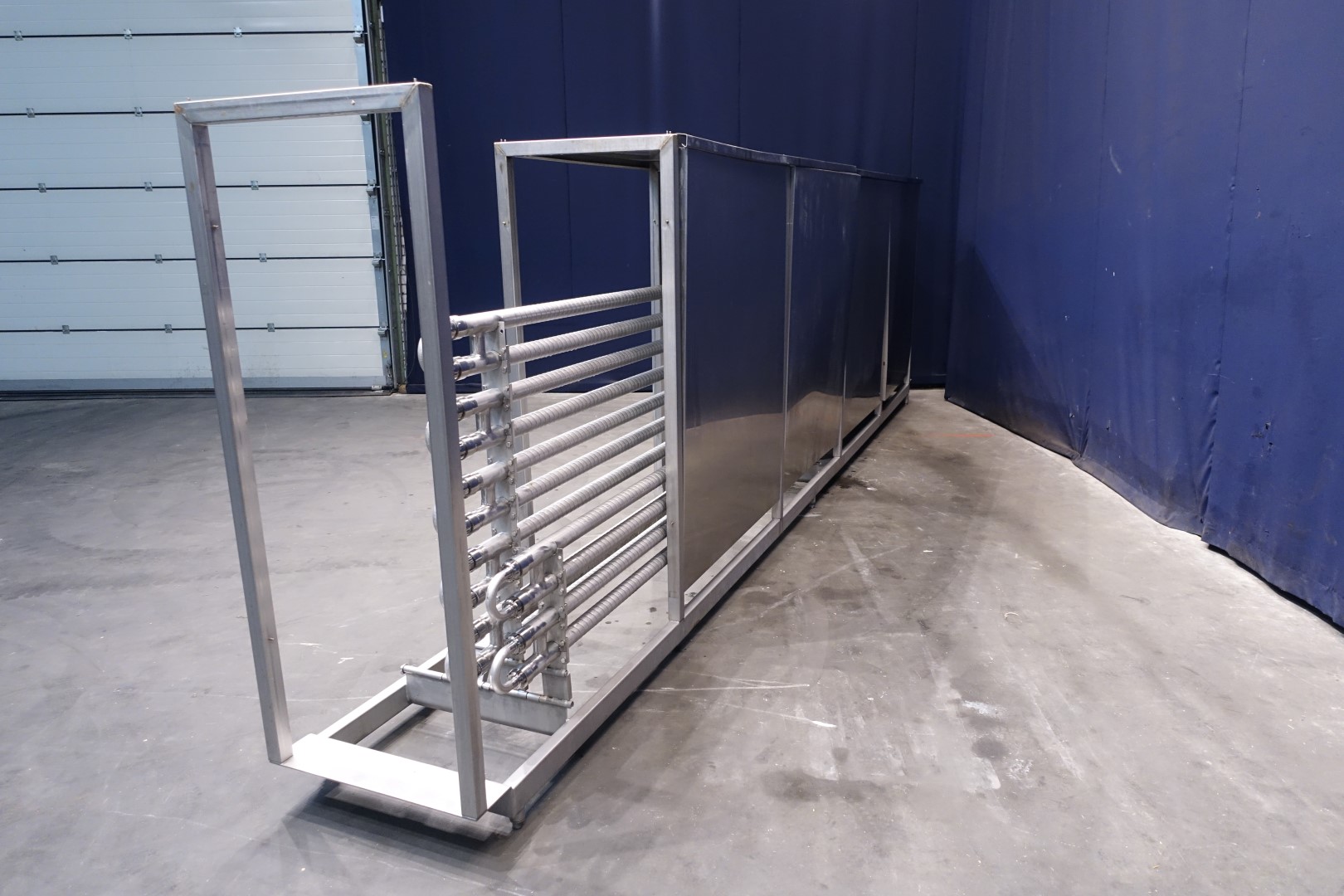

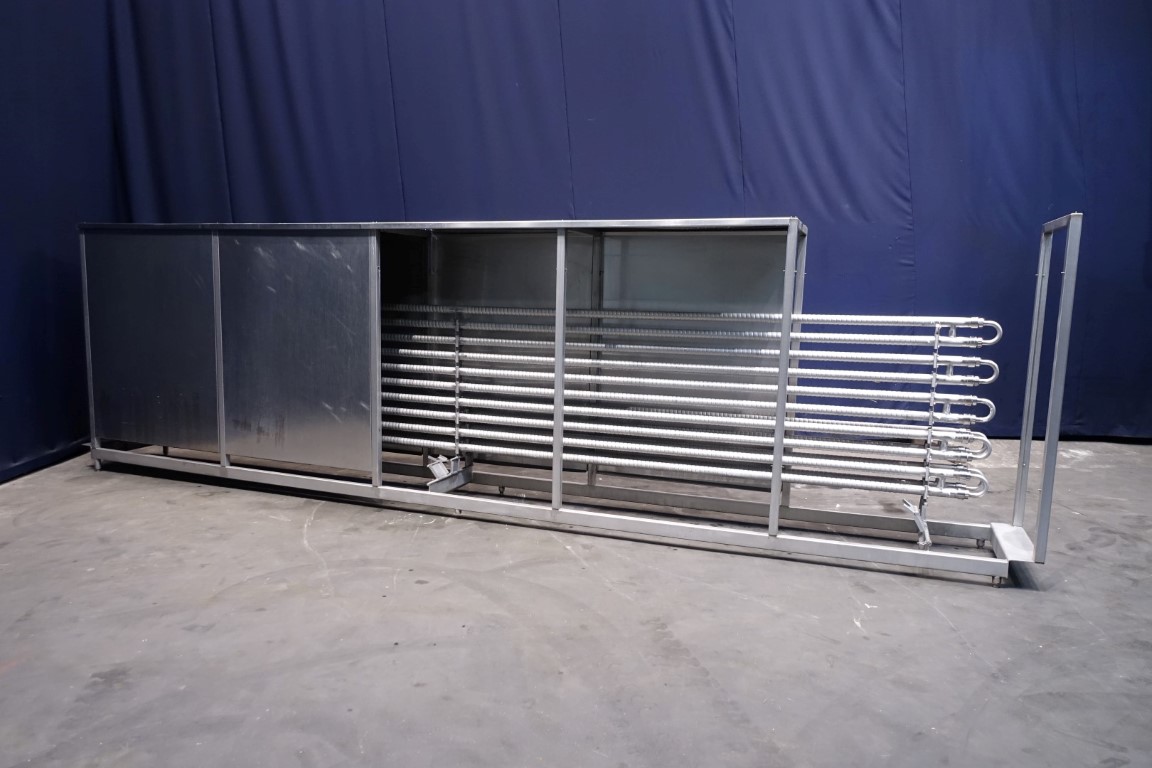

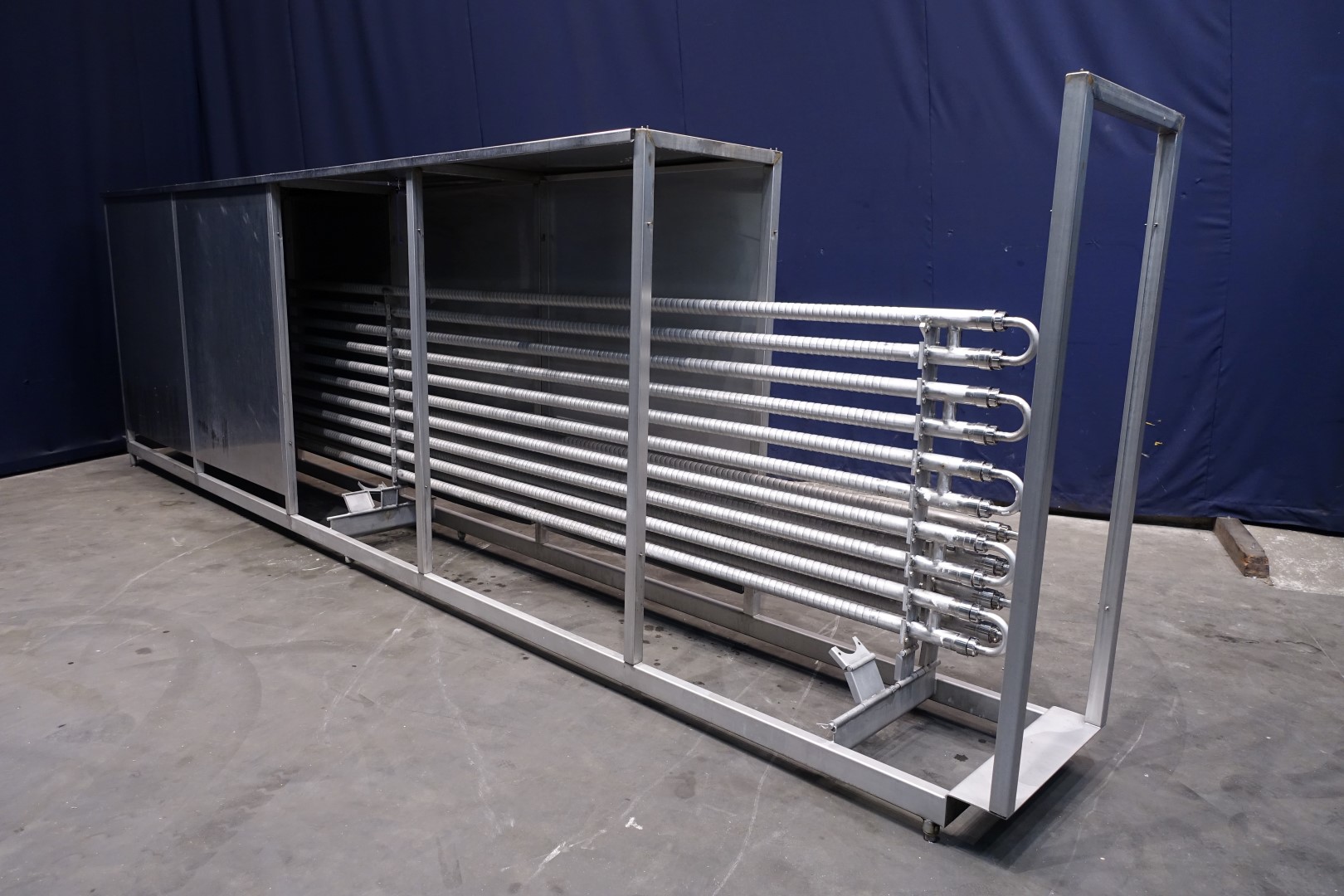

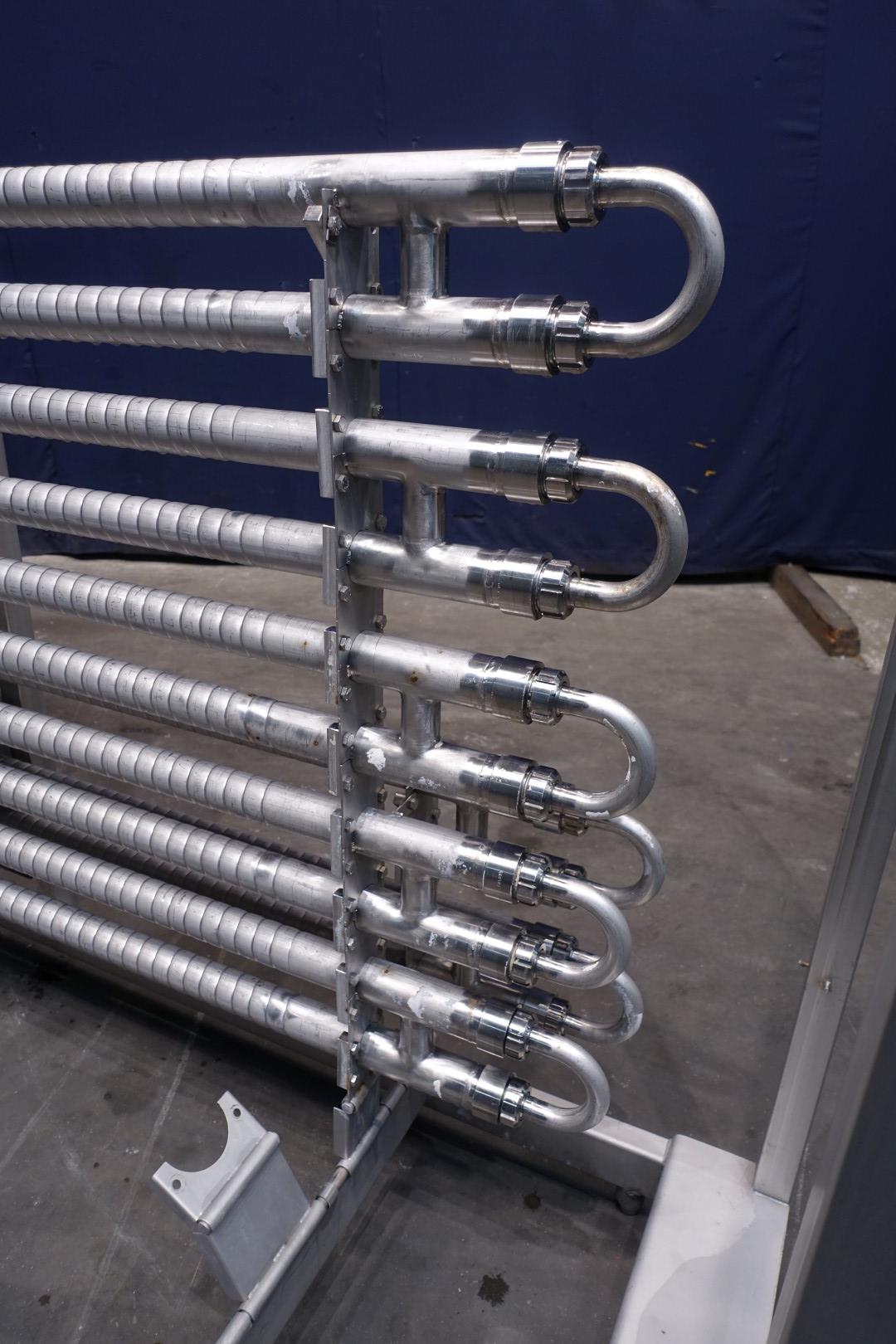

Tubular heat exchanging unit. Existing out of: A) 8 tubes (4 sets of 2), monotube, straight design, 2 sections (each section 4 tubes), length: 6 mtr, outer diameter 84 mm coagurated (spiral wound), 1 inner tube of diameter 38 mm, coagurated (spiral wound), connection: product: 1,5'' SMS, service: 2,5'' SMS and bends (1 missing). B) 14 tubes (7 sets of 2), multitube, straight design, 1 section, length: 6 mtr, outer diameter 54 mm coagurated (spiral wound), 4 inner tubes of diameter 16 mm, smooth, connection: product: 1,5'' SMS, service: 1,5'' SMS and bends (2 bends missing). All mounted in 1 stainless steel frame. Total dimensions: 60 x 75 x 190 cm.
